Characteristic:
■ Good mechanical and temperature performance.
■ High strength loose tube that is hydrolysis resistant.
■ Special tube filling compound ensure a critica protection of fiber.
■ Crush resistance and flexibility.
The following measures are taken to ensure the cable watertight:
■ Single Fiber Reinforced Plastic as the central strength member
■ Loose tube filling compound
■ 100% cable core filling
■ APLmoisture barrier
■ PSP enhancing moisture-proof Water-blocking materia
■ Adapted to Outdoor distribution.
■ Long distance and local area network communication.
■ Suitable for subway, tunnel, long-distance communication, inter-office communication, outdoor feeder and distribution for access network, etc.
Specification:
| item | value |
| Model Number | GYFTA53 |
| Type | Outdoor Fiber Optic Cable |
| Place of Origin | Guangdong,China |
| Brand Name | jiqian |

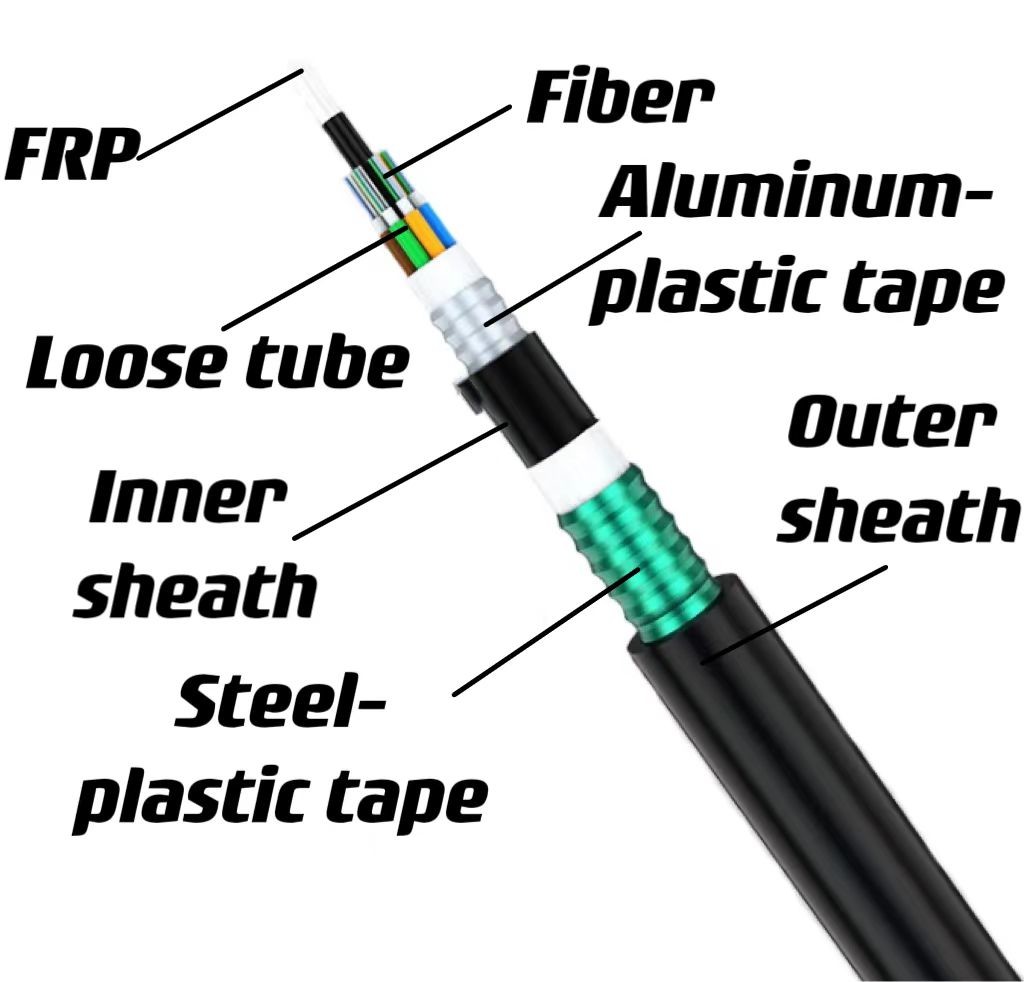

| Structure | stranded loose tube |
| Number of Conductors | ≥ 10 |
| Fiber count | 2-288 Cores |
| Fiber Type | G652D Single mode or as your request |
| Loose Tube | PBT |
| Central strength member | FRP |
| Armoured | Al tape |
| Outer Sheath | PE |
| Cable Structure | Multi-Loose Tube Aluminum Tape armor |
| Color | Black or as your need |
| Length | 1km 2km 3km 4km |
| Installation | Underground |
| Certification | CE/ROHS/ISO9001 /ANATEL |
Optical Characteristics:
| Fiber Type | | G.652 | G.655 | 50/125μm | 62.5/125μm |
| Attenuation | @850nm | | | ≤3.0dB/km | ≤3.3dB/km |
| (+20℃) | @1300nm | | | ≤1.0dB/km | ≤1.0dB/km |
| | @1310nm | ≤0.34dB/km | ≤0.40dB/km | | |
| | @1550nm | ≤0.21dB/km | ≤0.23dB/km | | |
| Bandwidth | @850nm | | | ≥500MHZ·km | ≥200MHZ·km |
| @1300nm | | | ≥500MHZ·km | ≥500MHZ·km |
| Numerical Aperture | | | | 0.200±0.015NA | 0.275±0.015NA |
| Cable Cut-off | | ≤1260nm | ≤1450nm | | |
| Wavelength λcc |
Company Profile:
Guangzhou Jiqian Fiber Optic Cable Co.Ltd. is located in 2nd Floor,Building B3,Building 3 No.43 Lixin 9th Road,Xintang Town,Zengcheng District,Guangzhou city,Guangdong province,China.It is a large-scale high-tech specialized joint-stock enterprise that integrates scientific research, development,production, and sales. It specializes in producing various types and specifications of optical cables with 2-288 cores. The company adheres to the corporate spirit of "integrity, speed, flexibility, efficiency, and innovation", and strives for perfection, appreciation for customers, and paving the way for success, Adhere to the standard that "customer satisfaction is the most important measure of our performance". We promise to work together with you with high-quality products, discounted prices,and first-class services to create a brilliant career.
We sincerely welcome customers all over the world to visit our factory and build long term relationship with each other.
WHY CHOOSE US:
Certification:
FAQ:
1. who are we?
We are based in Guangdong, China, start from 2017,sell to Africa(33.00%),South America(17.00%),Western Europe(17.00%),Mid East(17.00%),Southeast Asia(9.00%),South Asia(7.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiber Optic Cable, FTTH Drop Cable, Communication Cables, Outdoor/Indoor Fiber Cable
4. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
5.MOQ: what is your minimum quantity?
-MOQ : 1KM
6.Can I get a sample?
-Yes, we provide FREE sample and you just need to pay for express freight.
7.Accept OEM or ODM?
-Yes,we're manufacturer. And we have our own Engineering Department. You just need to tell us your requirements.
8.What is your delivery time?
-The general delivery time is 3-7 days after order confirmed. It depends on the order quantity.
